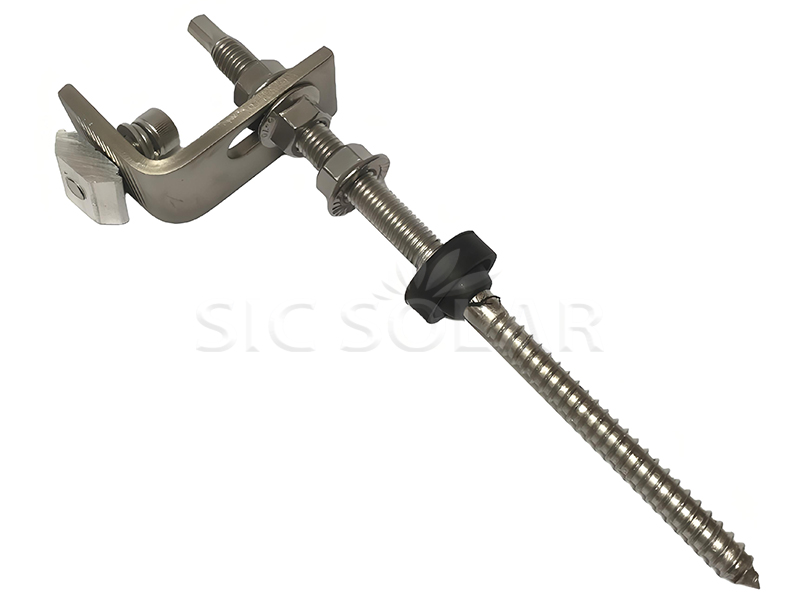

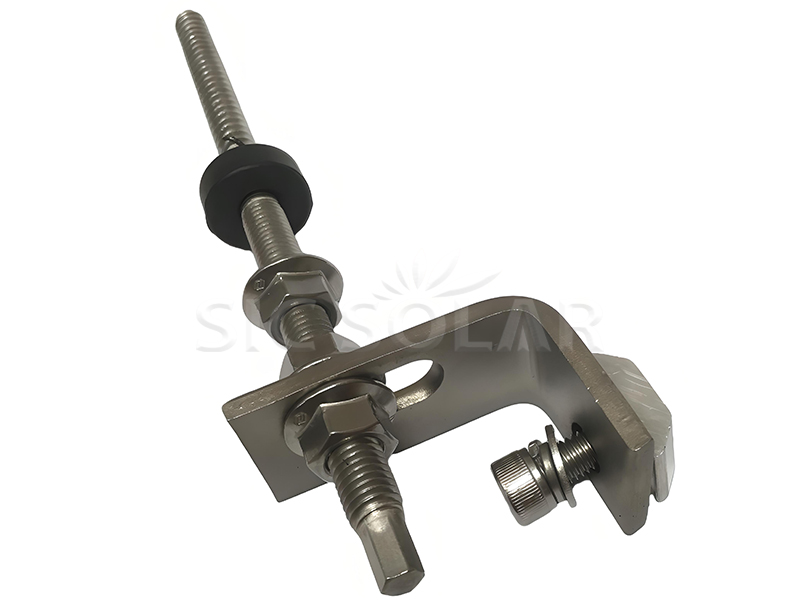

스테인리스 스틸 L자형 다리가 있는 목재 빔용 태양광 행거 볼트

스테인리스 스틸 L자형 다리가 있는 목재 빔용 태양광 패널 걸이 볼트는 태양광 패널 설치에 필요한 견고한 부품입니다. 이 볼트는 패널을 목재 빔에 오랫동안 단단히 고정시켜 줍니다.

상표:

SIC SOLAR

품목 번호:

SIC-HB-SL

Roof

기술 세부 사항 설치 가이드 패키지 Advantage FAQ

설치 현장	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5 & Stainless Steel 304
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Warranty	10 years and 25 years service time

1️⃣ 위치 찾기: 지붕 아래에 놓을 나무를 찾아 표시하고, 하중을 견딜 수 있도록 적절한 간격으로 배치해야 합니다.

2️⃣ Drill holes: Drill holes in the wood that fit the bolt threads.

3️⃣ Screw in bolts: Use a wrench to screw the bolts into the holes. Make sure they are tight and straight.

4️⃣ Attach L-feet: Put the L-shaped legs on the bolts, adjust the height, and tighten them with washers and nuts.

5️⃣ Put on rails: Attach the solar rails to the L-feet, make sure they line up, and tighten everything to the right amount.

Solar bracket package

☆ 견고한 고정력 - 행거 볼트가 강철에 단단히 고정됩니다.

☆ Lasts long – good stainless steel 304 means it will last for 10 years.

☆ Waterproof – The EPDM rubber keeps water out.

☆ Ready to go – The parts are put together, which saves you money on installation.

Related certificate

☆ Strength test – The mounts are tested to handle wind and snow.

☆ Aluminum certificate – AL6005-T5 ingredients list .

Q1: 샘플 주문이 가능한가요?

Yes, there is no MOQ limited, one sample order is ok.

Q2: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.
